Laminated LCG® smart glass with Gauzy’s premium Polymer Dispersed Liquid Crystal (PDLC) technology allows glass to turn on, off, or anywhere in between in milliseconds for diverse light control applications
Gauzy’s wide range of indoor and outdoor grade PDLC technologies are laminated by our global network of certified glass fabricators to create laminated smart glass. Smart glass with PDLC technology provides various industries the flexibility to control different types of light, while supporting:
Dynamic Privacy
Complete privacy or transparency when you need and want it most
Temperature Control
Solar Control smart films reflect IR light providing cooler interiors and less HVAC costs
High ROI
Mitigate longterm costs associated with cleaning, cooling, and signage
Dynamic Designs
Custom shapes and patterns add style and function to windows and partitions
Optimize Space
Replace thick studded walls with thin partitions or section open floor plans with minimalist solutions
Easy To Clean
Eliminate fabric or electronic curtains that are hard to clean and collect germs while affecting designs
Enhance Wellbeing
Provide light or privacy and give users flexibility to control their space for greater sense of control and wellbeing
PDLC Smart Glass Key Specifications
- Ultra low haze: avg. 2.5%
- UV Blocking: 99%
- Minimal energy consumption: avg. 3w/m²
- Operating Voltages: 42-70VAC
- Switching Times: 10ms
- Max Width: 1.8m (5.9ft) wide
- Standard or custom shapes with holes, notches
- Glass Types: Annealed, Tempered, Clear, Low Iron/Ultra Clear, IG Units, other
- Indoor and outdoor grades available
- Rolls or C2F sheets for professionals
- Compatible with PVB, EVA, TPU, SGP interlayers
- Custom laser-etched patterns
- Compatible with all Gauzy controllers
Laminated PDLC Smart Glass Technologies
The following PDLC product lines are used to create laminated LCG® Smart Glass. They can be purchased as raw material rolls and sheets to be laminated by qualified glass fabricators or as glass panels as fulfilled through our certified distribution channel. Each product line has a unique set of characteristics and features respectively, including exterior compatibility, color variations & patterning capabilities.​
High Performance LCG®​
(HP-LCG®)
Our first ever low voltage compatible film with industry leading low haze of 2.2% at 70VAC and just 3.2% at 42VAC.

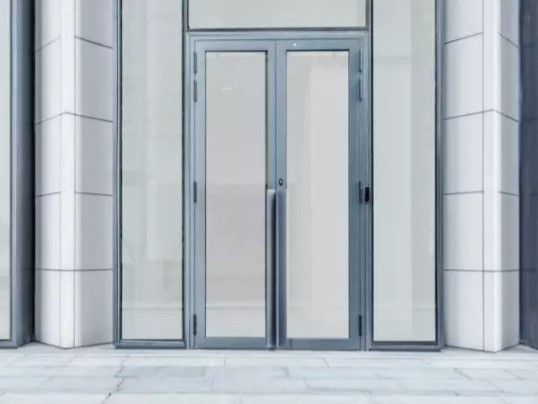

Solar Performance LCG®
(SP-LCG®)
Blocks up to 78% of Solar IR for temperature reduction of up to 15C, with EOP features.
Extended Outdoor Performance LCG®
(EOP-LCG®)
Operating temperature range of -20-+90C and under extreme weather and outdoor-grade conditions, maintaining durability under humidity and IR and UV exposure, with non-solar applications.
Get a free no obligation quote from a PDLC smart glass expert
Laminated PDLC Smart Glass Composition
PDLC Smart Glass films developed and manufactured by Gauzy are laminated between two pieces of glass with adhesive interlayers (PVB, EVA, TPU, UA) to create LCG® Smart Glass. Smart glass can be comprised of various types of glass to best fit a projects needs.

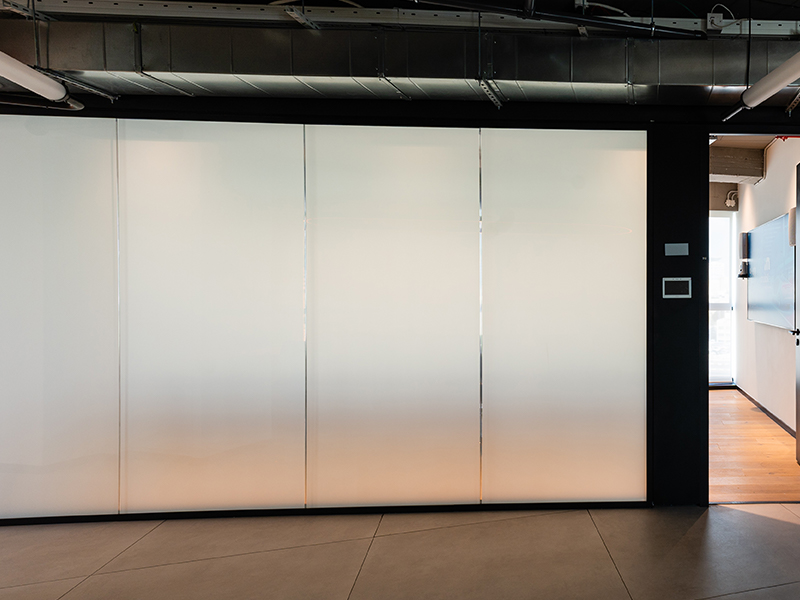

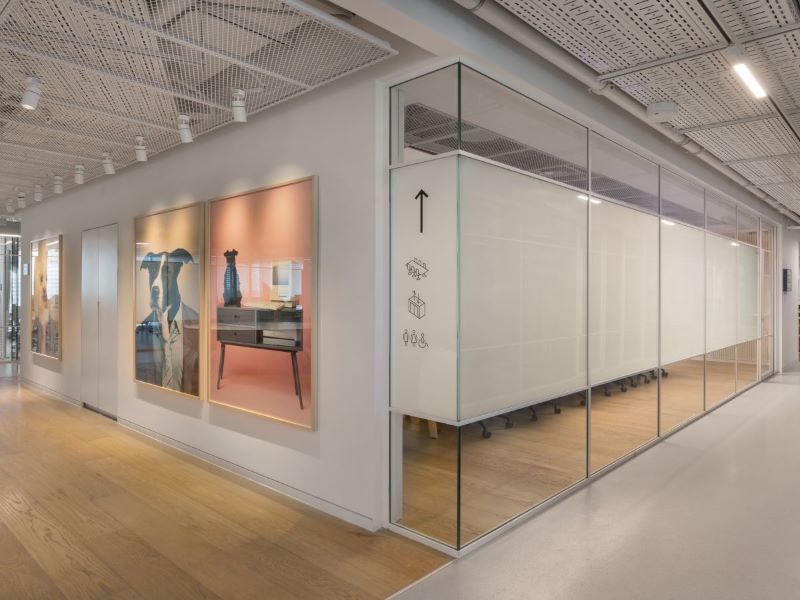

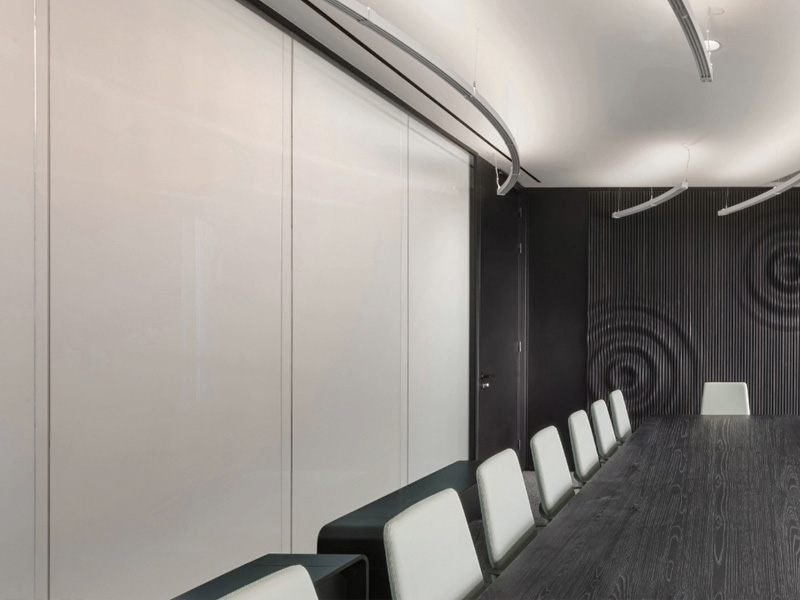

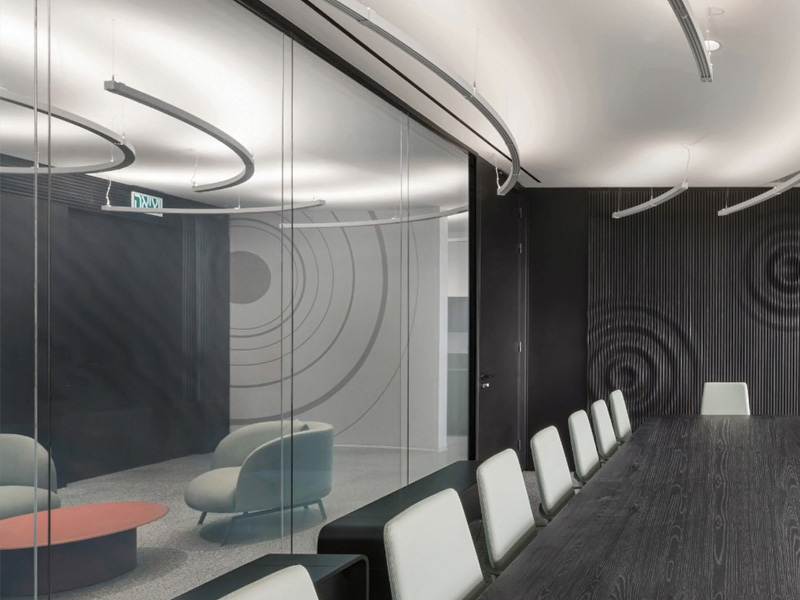

Turn smart glass off and on

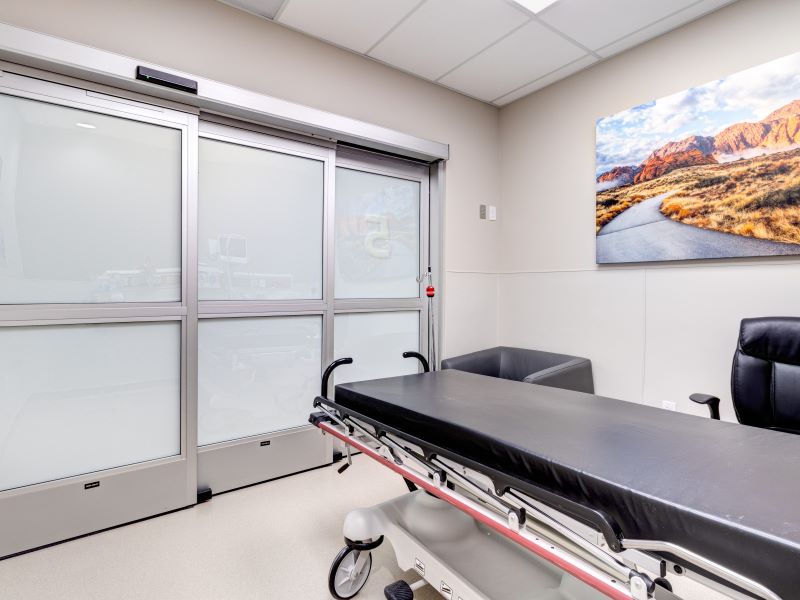

Off

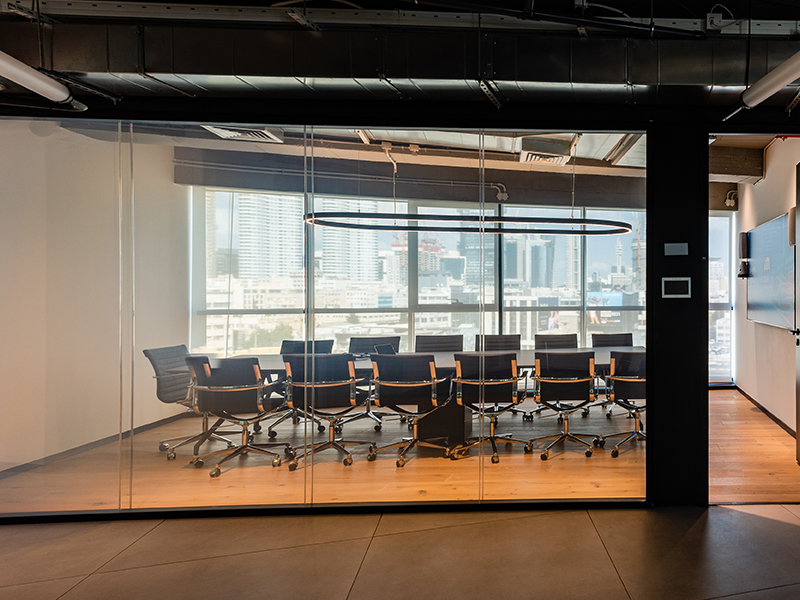

On
Off
On
Easy to control
Gauzy's patented PDLC Controllers​
- Mini, Flex, and MultiPlex models for various glass sizes and channel outputs
- On, Off, Dimming functions
- Small form factor and footprint with easy installation
- Large drive capacity
- Square-wave outputs for ultra high transparency
- Advanced protection features for better ROI and MTBF
- Ultra-low voltage for up to 40% reduction in power consumption
- WIFI/DMX/RS485/0-10VDC/Lutron compatible for easy connection and control options
Gauzy's wall mounted Touch Panels & RF Remotes​
- Control of single or multiple glasses and segments​
- Remotes with long range RF control up to 30m/98ft
- On/off and dimming functionalities
- WIFI enabled for easy syncing with automation system like Alexa and Google Home​
- Sleek & Modern Design with a clean finish
- Available as remote only, or touch panels + remotes
Experience LCG® PDLC Smart Glass
Order Gauzy’s sample kit to try smart glass for yourself!
APPLICATIONS

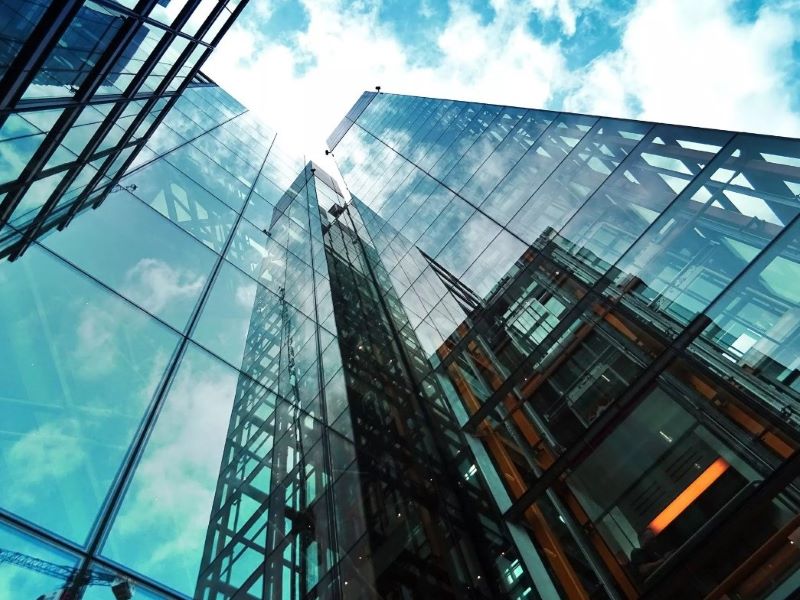

Architecture
PDLC Smart Glass offers dynamic transparency, enhancing architectural designs inside and out, while meeting sustainability requirements​

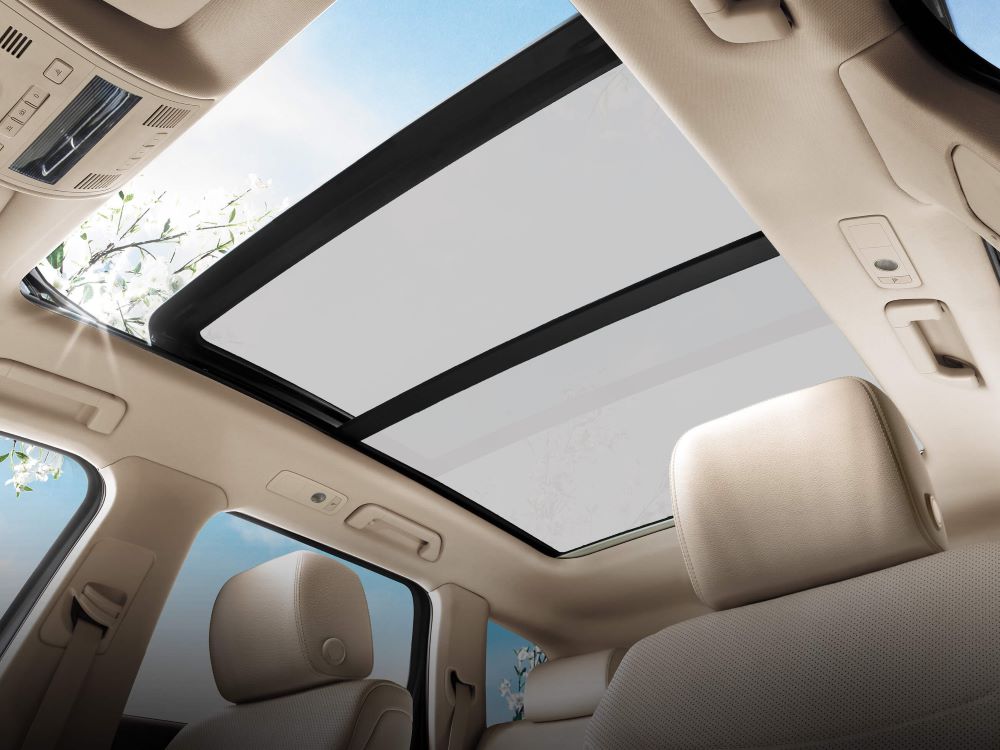

Automotive
PDLC smart glass revolutionizes automotive design, providing customizable tint levels for enhanced comfort, privacy, and energy efficiency in vehicles.​

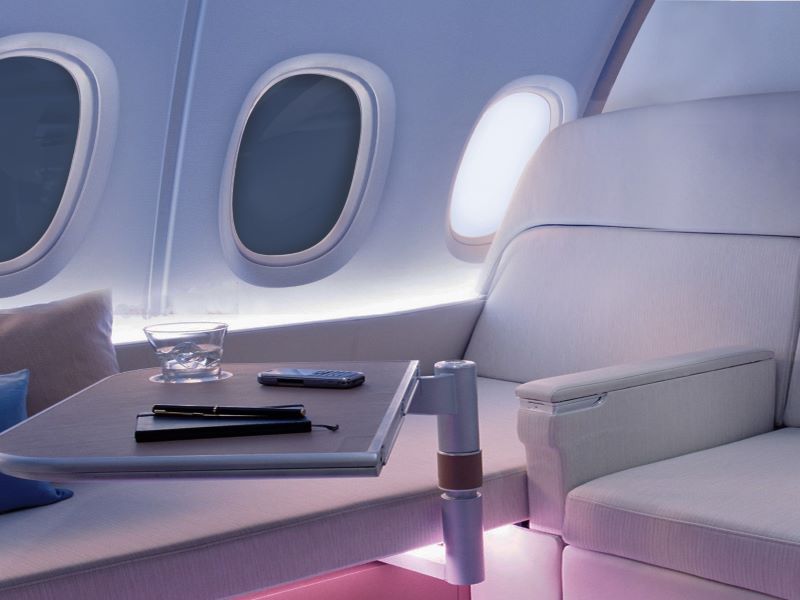

Aviation
PDLC smart glass transforms aircraft and jet interiors, offering dynamic privacy solutions for windows, cockpit partitions, and cabin dividers, enhancing comfort.​
Get a free no obligation quote
Are you an OEM or Tier 1 supplier looking for PDLC Smart Glass technology for transportation vehicles including passenger vehicles, planes, boats, trains, and more?
FAQ
Questions and Answers
Yes. Gauzy offers both films for lamination by fabricators, and a wet adhesive retrofit film, allowing any piece of existing glass to become LCG®.
Gauzy PDLC films can turn from completely opaque to completely transparent and the other way around in less than 0.1 seconds
Gauzy stands out as a leading provider of fully optimized PDLC films designed for outdoor applications. Our High-Temp LCG® and Solar Control LCG® smart glass products are well-adapted for use in outdoor conditions.
Smart glass consumes low voltage and low power consumption. the product is driven by our patented controllers LCG® which consumes on average 3 Watt/m2.
LCG® smart glass is cleaned just like any ordinary glass, with a soft cloth and glass cleaner.
Yes. Gauzy’s Solar LCG® smart glass products reflects IR light, therefore reducing temperatures inside a building by up to 15 degrees C, making cooling systems consume less energy. 10 sqm of our transparent displays systems consumes less than 1 LED bulb, making advertising more polite and ecofriendly.
Gauzy offers competitive pricing on all our PDLC smart glass products. Contact us for a quote today.
With laminated smart glass, a sheet of PDLC or SPD film is cut and sealed between two panes of glass. It is ideal for new construction or renovation projects in which glass can be replaced. On the other hand, adhesive smart film is applied retroactively onto existing glass – making it great for existing projects.Â
Yes, Gauzy’s controllers are CE and UL recognized. Please click here for the certificate.
