Solar LCG® smart glass

Solar Control Smart Glass combines transparent to opaque switching with IR blocking features  for advanced glazing solutions in facades and skylights

 Gauzy’s patented Solar Control LCG(r) Smart Glass turns on, off, or anywhere in between while blocking up to 78% of IR light that creates heat, reducing cooling costs and increasing energy efficiency in Architextural and automotive projects

privacy icon

Dynamic Privacy

Complete transparency or opacity in milliseconds with constant IR blockage and natural light

thermometer icon

Temperature Control

Solar Control LCG blocks up to 78% of IR, reducing temperatures by up to 15 degrees

high roi icon

High ROI

Energy Efficient Reduce HVAC costs as interiors are cooler from start

transparent display icon

Transparent Displays

Transform any window into a HD rear-projection display

LCG® Smart Glass Film Types

Gauzy’s Solar Control LCG Smart Glass technology is available as a film that can be laminated and embedded into glass, or as a retrofit application that is applied to existing glass by a window film installer.

Laminated Smart Glass

laminated lc diagram

Support sophisticated projects from the start
with films that are laminated between two pieces of glass by Gauzy’s fabrication partners.

Adhesive Smart Film

retrofit lc diagram

Transform existing glass into LCG® with an adhesive smart film with a scratch proof protective outer coating for long-lasting durability.

gauzy retrofit window

WHITE

White LC Films provide a clean, natural, and aesthetic switchable glass solution, allowing privacy when you need it, and an open atmosphere when you want it

gauzy grey window

DARK

Dark LC Films support advanced architectural and interior design strategies, and are applicable across all industries and applications, including automotive and aeronautics

gauzy blinds window

PATTERNS

Laser patterning with non-visible lines support blinds or custom designs for a dynamic and sophisticated privacy and light-control solution that replaces traditional shutters

Gauzy Map Partner Points Vector yellow

Key Specifications

• Ultra low haze: avg. 2.5%
• Minimal energy consumption: avg. 3w/m²
• Operating Voltages: 35-70VAC
• UV Blocking: 99%
• Switching Times: 10ms
• Max Width: rolls or cut-to-fit 1.8m wide
•  Indoor and outdoor grades available

See Smart Glass in "Off" and "On" states

Off
On

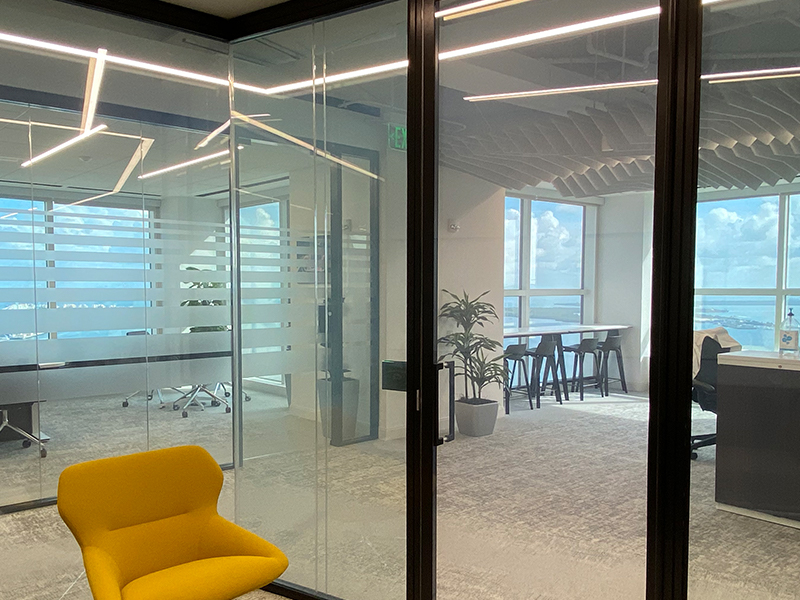

Smart Glass for office in

Off
On

Features

  • blocks up to 78% of IR light responsible for creating heat
  • Can reduce temperature in a space by up to 15c(F equivalent needed)
  • Blocks up to 99% of UV
  • Optimized for extreme high and low temperatures
  • Easy to clean and low maintenance

Benefits

  • Solar Control LCG blocks up to 78% of IR, reducing temperatures by up to 15 degrees
  • Saves costs and energy output associated with cooling/HVAC for greener projects
  • Keeps spaces with direct sun exposure cool and temperature controlled
  • Manage solar gain and gore without blocking access to natural light
  • Can be used as a projection screen when opaque, creating digital signage on facades
  • A long lasting investment with a high ROI

LCG® Solar Control Technology

Managing solar gain and glare without blocking visible light, while providing switchable privacy in milliseconds, Solar LCG is the most advanced liquid Crystal glass on the market for exterior windows
