LCG® smart glass
for architects and interior designers
Enhance glass filled interior and architectural designs with a fully integrated high tech shading and privacy solution that creates an unforgettable glass experience.
Gauzy LCG® Smart Glass allows any interior glass partition or facade window to switch from transparent to dimmable levels of opaque on demand for instant privacy, shading, or solar control in the spaces we spend our time most.
Privacy & transparency
Complete privacy or transparency when you need and want it most
custom shading
Control how much light enters a space without blocking views
energy Control
Reduce interior temperatures for energy saving glazing

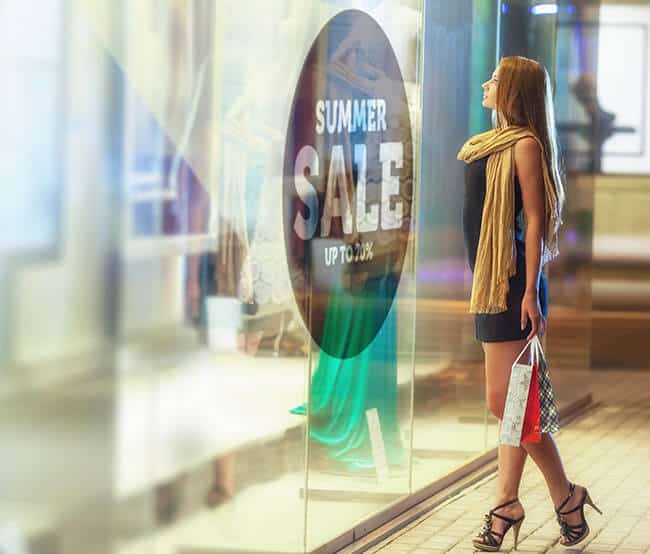

transparent displays
Digital window signage that turns transparent for 100% usability
See Smart Glass in "Off", "On", & "Patterned" States
- Off
- On
- Patterned
- Off
- On
Two Distinct Smart Glass Technologies
Gauzy’s smart glass products upgrade projects by eliminating traditional shading and privacy solutions that compromise minimalist designs. Both switching in less than three seconds and compatible with automation systems, SPD and PDLC based smart glass provide smart solutions for smarter spaces.
Gauzy PDLC Technology
Indoor and outdoor grade Liquid Crystal smart glass and adhesive smart films support opaque to transparent switching for privacy, projection, and IR reflection
Gauzy SPD Technology
Gauzy SPD smart glass blocks up to 99% of light, allowing users to tint glass in seconds for dynamic shading without blocking views to the outside
PDLC Key Specifications
- Ultra low haze: avg. 2.5%
- UV Blocking: 99%
- Minimal energy consumption: avg. 3w/m²
- Operating Voltages: 42-70VAC
- Switching Times: 10ms
- Max Width: 1.8m (5.9ft) wide
- Standard or custom shapes with holes, notches
- Glass Types: Annealed, Tempered, Clear, Low Iron/Ultra Clear, IG Units, other
- Indoor and outdoor grades available
- Newly laminated glass or adhesive smart film
- Custom laser-etched patterns
SPD Key Specifications
- Ultra low haze: avg. 2.5%
- UV Blocking: 100%
- Minimal energy consumption: avg. 1.5w/m²
- Operating Voltages: 100VAC squarewave
- Switching Times: <3s
- Only available SPD with architectural widths
- Standard or custom sizes and shapes with holes, notches
- Glass Types: Flat or Curved, Annealed, Tempered, Clear, Low Iron/Ultra Clear, IG Units, other
- Available through licensed partners
- Custom laser-etched patterns

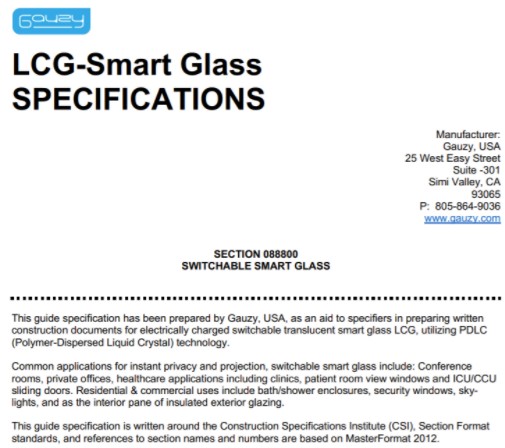

Start Specifying Gauzy Today
Architects, Designers, and Specifiers in over 40 countries choose Gauzy for:
- our wide product offerings with the lowest haze, fast switching times, and proven longevity
- patented technologies including the industries only smart glass controllers
- impeccable service from quote to completion
Start specifying Gauzy Today.
SMART GLASS SOLUTIONS FOR DIVERSE INDUSTRIES
TRUSTED BY LEADING BRANDS WORLDWIDE
The Setai
Avery Dennison
Five OHM
Clestra Hauserman
Hilton
Maars
Deloitte
Gensler
J.P. Morgan
Acqualina
Super-Pharm
Crowne Plaza
Contact our smart glass experts today!
FAQ
Questions and Answers
In the clear, or ON state, an electrical current is passed through a layer of film called PDLC (Polymer Dispersed Liquid Crystal). The electrified state causes microscopic crystals to align along a number of parallel axes, thus allowing vision through the glass.
Smart Glass in its OFF state has a frosted or opaque appearance because the PDLC (Polymer Dispersed Liquid Crystal) remain in a randomized configuration that refracts the light that enters the mixture.
Haze factor describes the amount of light scattered when light passes through a transparent sample. The lower the haze factor value, the higher the clarity of the sample, indicating fewer impurities.
Gauzy’s has a ultra low haze: avg. 2.5%. This is the best in the industry.
PDLC is an initialism for Polymer Dispersed Liquid Crystal.
Switchable smart glass can block 99% of all UV rays.
No. We have a network of professional installers that we’ve partnered with for smart glass and film installation.
What type of application and where is the switchable glass/film being installed (interior, exterior, wet application, etc)?
What is the size (width and length) for each of the pieces in the project?
What are the glass specifications required (polished edges, low iron, etc)?
What is the wiring location required for each panel?
Are you an architect, glazier, or end-user?
What is the shipping address for the project?
Yes. Call sales for more information: +1 214 501 2469
