Gauzy SPD allows glass to turn on, off, or dim to block up to 99% of light for high performance glazing that replaces traditional shading solutions.

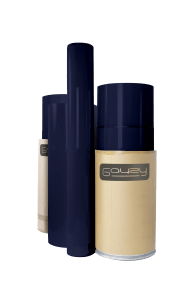

SPD emulsions and films developed and manufactured by Gauzy are optimized and utilized for automotive and architectural dimmable glass applications. Precisely controlled allowing user to control light while maintaining views SPD is the optimal choice for outdoor windows across industries.
Custom Shading
Dimming features allow complete control of how much light enters a space for a comfortable experience
Maintain Views
SPD blocks up to 99% of light, creating shade while maintaining a view of the outside scenery
Energy Efficient
Improve energy ratings and earn green points by mitigating lighting and heating/cooling costs
Optimize Light
Utilize natural light for energy savings and ambiance, and shade during peak hours for cooling and solar control
Easy to Clean
Eliminate fabric or electronic curtains that are hard to clean and collect germs while affecting designs
Enhance Wellbeing
Provide instant light or minimize eye strain from glare giving users flexibility and comfort instantly
Fast Switching
Unlike other tinting technologies, switch from off to on in just 3 seconds on large or curved panels
Key Specifications
- Ultra low haze: avg. 2.5%
- UV Blocking: 100%
- Minimal energy consumption: avg. 1.5w/m²
- Operating Voltages: 100VAC squarewave
- Switching Times: <3s
- Only available SPD with architectural widths
- Standard or custom sizes and shapes with holes, notches
- Glass Types: Flat or Curved, Annealed, Tempered, Clear, Low Iron/Ultra Clear, IG Units, other
- Available through licensed partners
- Compatible with PVB, EVA, TPU interlayers
- Custom laser-etched patterns
SPD Laminated Smart Glass Composition
SPD Smart Glass films developed and manufactured by Gauzy are laminated between two pieces of glass or polycarbonate with adhesive interlayers to create LCG® Smart Glass. SPD Smart Glass can be comprised of multiple types of glass and implemented into IGUs to best fit a project’s needs.
Easy to Control
Gauzy’s industry leading HW supports controlled dimming for a custom experience,Â
while ensuring superior optical and mechanical performance of SPDÂ

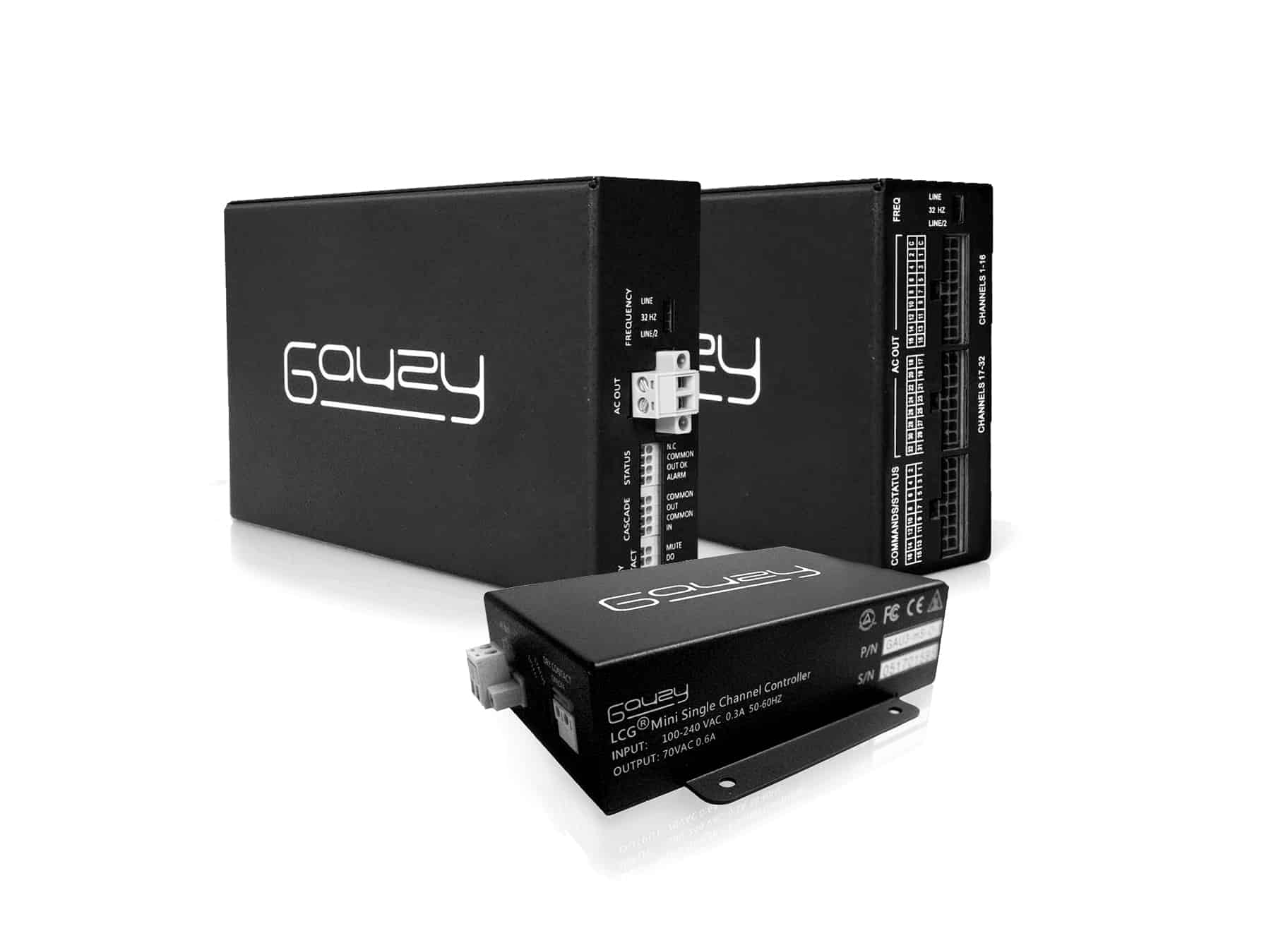

Gauzy's patented PDLC Controllers​
∞ Mini, Flex, and MultiPlex options for various uses and configurations
∞ Small form factor and footprint with easy installation
∞ Large drive capacity up to 10 sqm
∞ Dimming and fading control for tunable shading
∞ Advanced protection features for better ROI and MTBF
∞ WIFI/DMX/RS485/0-10VDC/Lutron compatible for easy connection and control options
Gauzy's wall mounted Touch Panels & RF Remotes​
- Control of single or multiple glasses and segments​
- Remotes with long range RF control up to 30m/98ft
- On/off and dimming functionalities
- WIFI enabled for easy syncing with automation system like Alexa and Google Home​
- Sleek & Modern Design with a clean finish
- Available as remote only, or touch panels + remotes
APPLICATIONS
Automotive
Shade and block glare with SPD sunroofs, sun visors, and windows while saving material costs, space, and protecting interiors Â
Planes & Trains
Allow passengers to choose how they experience natural light, while still being able to enjoy outside scenery and natural views
Marine
Enjoy serene ocean and sky views without strong light reflection, glare, and heat with smart glass in cabin, bridge, and deck windowsÂ
Skylights & Facades
Replace complex shading systems allow for natural light, views, and sleek designs while being environmentally consciousÂ
Experience LCG® Smart Glass
Order Gauzy’s sample kit to try smart glass for yourself!
Get a free no obligation quote
Are you an OEM or Tier 1 supplier looking for SPD Smart Glass technology for transportation vehicles including passenger vehicles, planes, boats, trains, and more?
FAQ
Questions and Answers
Yes. Gauzy offers cut to fit films for lamination or rolls in varying widths.
Yes! Gauzy SPD allows dynamic shading, therefore, light can enter or be blocked from a space. Utilizing natural light reduces lighting and heating costs, and blocking light mitigates HVAC consumption, ultimately improving energy ratings and efficiency.
Gauzy’s SPD has a unique patented controller. With a small form factor and footprint, the Gauzy SPD controller powers 10sqm of LCG® with WIFI/DMX/RE-485 compatibility for easy control with smart devices.
SPD does not become fully opaque, therefore it is not ideal for privacy or projection, unless paired with LC technology. On the contrary, it provides the best shading solution, as it allows you to maintain a view of the outdoors. Interested in Dual Glazing? Let us know.
Yes. Gauzy is the only manufacturer of SPD with a variety of custom cut-to-fit widths that accommodate architectural size windows.
Gauzy LCG® is a low voltage product with minimal energy consumption. Driven by our patented square wave controllers, LCG® consumes on average 1.5watts/sqm.
SPD blocks up to 99% of light when fully tinted, and various levels in between with dimming controllers, making it a perfect replacement for blinds and traditional shading systems. Since SPD does not become fully opaque, it allows you to shade without blocking views for an optimal experience.
Gauzy offers competitive pricing on automotive and architectural grade SPD. Contact us for a quote today.
